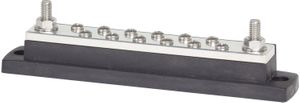

BlueSea MaxiBus 250A BusBar Two 5/16"-18 Studs #2105
Click To Enlarge

BlueSea MaxiBus 250A BusBar Two 5/16"-18 Studs #2105

Item # 476051
Our Price: $48.95
QTY:
Item Description
BlueSea MaxiBus 250A BusBar - Two 5/16"-18 Studs and Twelve #10-24 Screws - #2105

  • Busbars are used to consolidate multiple wires or feed multiple circuits
  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single screw or stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

    Specifications
  • Maximum Voltage: 300V AC / 48V DC
  • Number of Screw Terminals: 12
  • Number of Terminal Studs: 2
  • Terminal Type: #10-24 Screw / 5/16"-18 Stud
  • Continuous Rating: 250A
  • Base Material: UL 94-V0 Rated
  • Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
  • Recommended Screw Torque: 23 in-lb (2.6 N·m)
  • Recommended Stud Torque: 132 in-lb (14.91 N·m)
