Home >> Electrical & Lighting >> Switches, Terminal Blocks >> BlueSea Terminal Block 65A - 4 Circuit #2604
BlueSea Terminal Block 65A - 4 Circuit #2604
Item # 476059
Our Price: $11.95

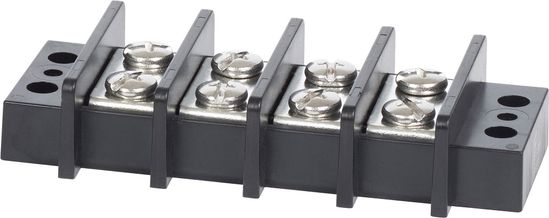

BlueSea Terminal Block 65A - 4 Circuit #2604
Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
Specifications Circuits: 4
Length: 3.89in (98.81 mm)
Maximum Voltage: 600V AC/DC
Continuous Rating: 65A
Base Material: UL 94 V0, PC
Bus Material: Nickel-Plated Brass
Mounting Screw: #10 [M5]
Screw Material: Stainless Steel
Screw Size: #10-32
Screw Terminal Torque: 17.5 in-lb (1.98 Nm)
Terminal Screws: M5
Wire Terminal Size: #10 [M5]
