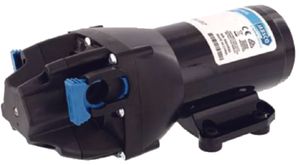

Jabsco Par-Max Water System Pump 4gpm 40psi 24v mfg#32600-0094 / Q402J115S-3A

Jabsco Par-Max Water System Pump 40gpm 40psi 24v mfg#Q402J115S-3A *(Superseded from 6-326000094) Original Part: 6-326000094

The Par-Max HD Automatic Water System Pump is designed for self-contained boats and RV’s with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump begins operation to provide a smooth flow from tank to faucet. Closing the faucet automatically shuts the pump off.

Specifications:

Connections: for 13mm (½”) bore hose

Dimensions: 239mm long, 109mm wide, 97mm high

Fuse Size: 10(amp)

Output: 16 litres/minute (3.5 gallons/minute) open flow

PRESSURE SWITCH - cuts in at 1.4bar (20psi) - cuts out at 2.8bar (40psi)

Efficient, high-flow, self-priming pump serving 4 or more outlets

Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage

Supplied with snap-in ports for hose 1/2" (13mm) and Strainer

Motor protected by automatic thermal overload cut-out

Features:

Co-molded diaphragm technology for long life and durability

Heavy duty motors and cast aluminum lower housings which allow for long-life, even at high pressures

Efficient and quiet operation

Integrated, sealed pressure switch for on-demand operation

Self-priming allows for installation versatility

Can run dry without damage

Quick connect ports for ease of installation, servicing, and maintenance

Vibration dampening mounting feet

Equipped with integrated bypass module to reduce cycling and provide smoother flow
