Home >> Electrical & Lighting >> Switches, Terminal Blocks >> BlueSea Terminal Block 30A - 2 Circuit #2502
BlueSea Terminal Block 30A - 2 Circuit #2502
Item # 510540
Our Price: $4.95

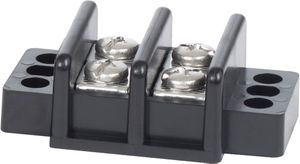

BlueSea Terminal Block 30A - 2 Circuit #2502
Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
Specifications Circuits: 2
Length: 2.13in (54.1 mm)
Maximum Voltage: 600V AC/DC
Continuous Rating: 30A
Base Material: UL 94 V0, PC
Bus Material: Nickel-Plated Brass
Mounting Screw: #10 [M5]
Screw Material: Stainless Steel
Screw Terminal Torque: 10 in-lb (1.13 Nm)
Terminal Screws: M4
Wire Terminal Size: #8 [M4]
